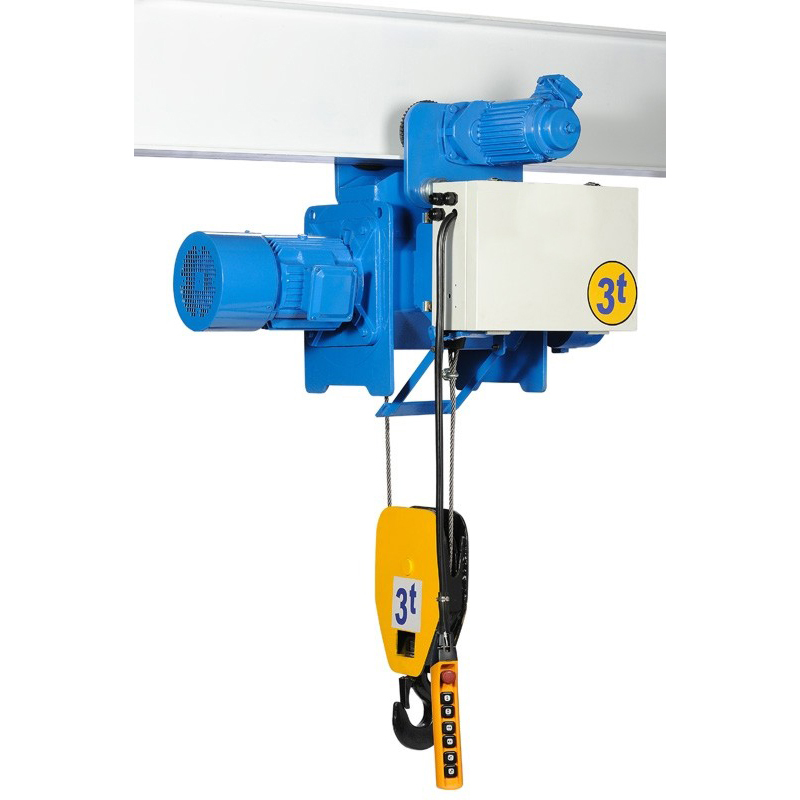

NOVA NF Series
Monorail Wire Rope Hoist

Capacities: 1 to 10 Tons
Lift: Maximum 15m

NOVA NF Series Monorail Wire Rope  Hoist is a  heavy-duty hoist built to provide long life in heavy applications with the higher lifting speeds and precise positioning control.


Features & Benefits:

• DC Brake
  New design of DC brake electromagnetic motor disc system works precisely and synchronously with motors, and with a rectifier for trouble free, Rapid reaction with low noise & Durable wear
• Motor
  Highly efficiently squirrel cage motor of 50% ED rate are quiet, small volume, light weight.

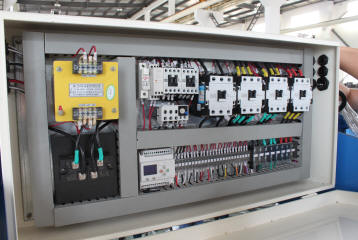

• Control box
  IP54 control box is applied, higher IP degree is available upon request.
• Gearbox
  Hoist reduction gear system are made of alloy steel with surface harden treatment for long lasting life span.
• Wire Rope
  According to JIS No.6 standard for wire rope applications, we use 6x37-A and IWRC 6xFi(29)-B wire rope which features flexible and long life span.
• Sheave
  The proper diameter of sheave ensures the operation and life span of wire rope.
• Hook
  Hot forged hooks with thrust bearing are enable to be swivelled 360°.

Technical Data

Remark: Above performance ratings are based on 50Hz supply
